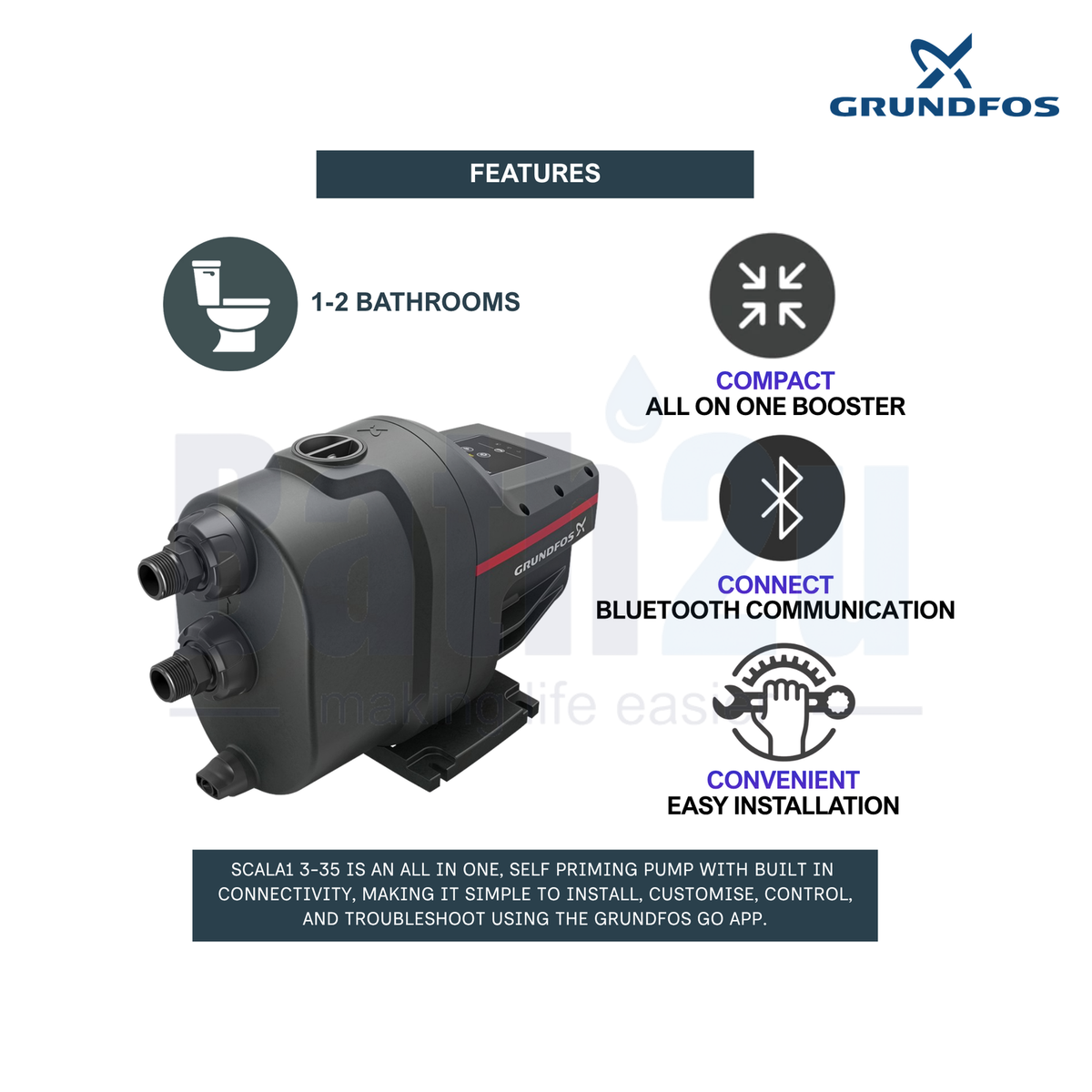

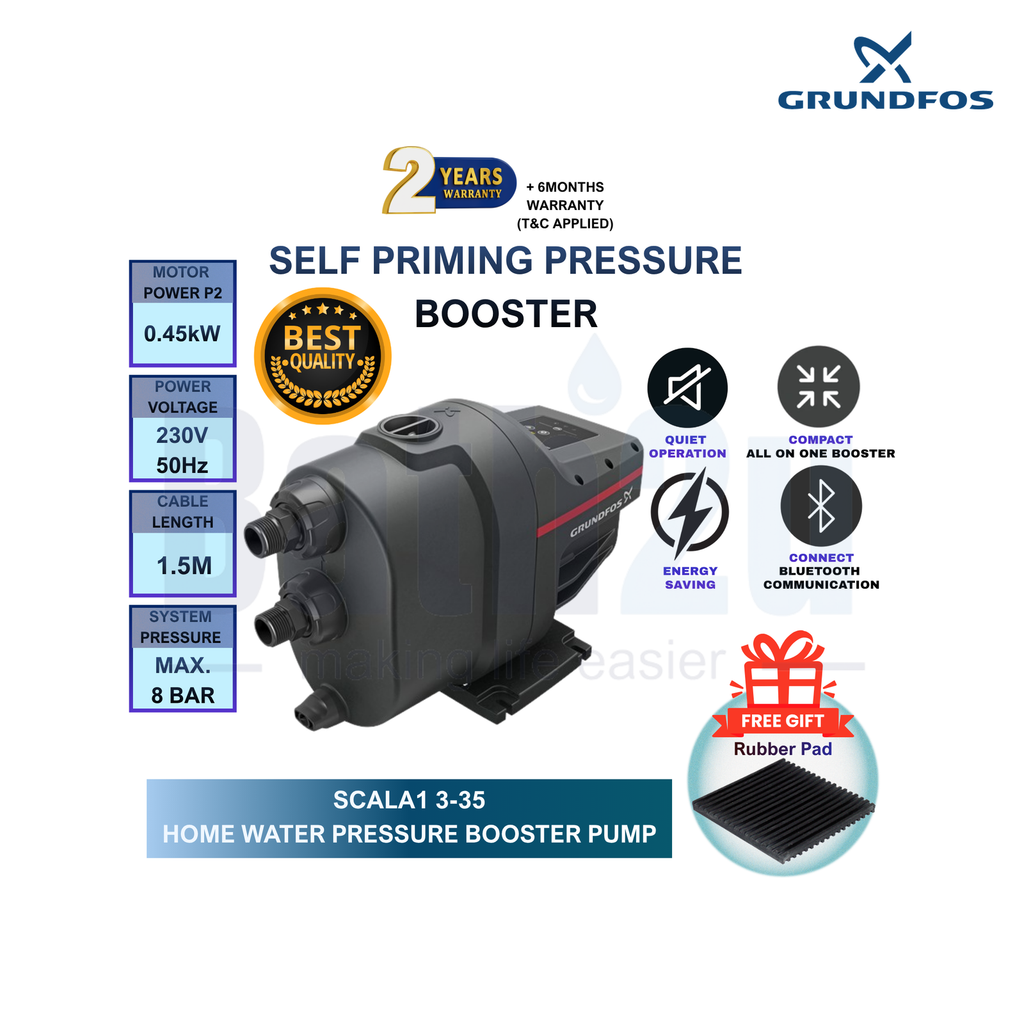

The Grundfos SCALA1 3-35 is a modern, self-priming, multistage pressure booster water pump designed to deliver efficient water-on-demand performance for residential water supply. Powered by a quiet, water-cooled permanent magnet motor operating under 55 dB(A), this integrated booster system combines plug-and-play convenience with smart control features. Built with a durable composite enclosure and a weatherproof design suitable for both indoor and outdoor installation, the SCALA1 3-35 offers versatile water pressure boosting with built-in Bluetooth connectivity for easy monitoring and adjustments via the Grundfos GO app.
Key Features:
- Smart Bluetooth Connectivity: Built-in Bluetooth enables effortless control, monitoring, maximum runtime timer adjustments, and settings customization through the Grundfos GO app.
- Self-Priming Multistage System: Capable of manometric suction lift up to 8 meters (26.2 ft), drawing water from a depth of 8 meters in less than 5 minutes.

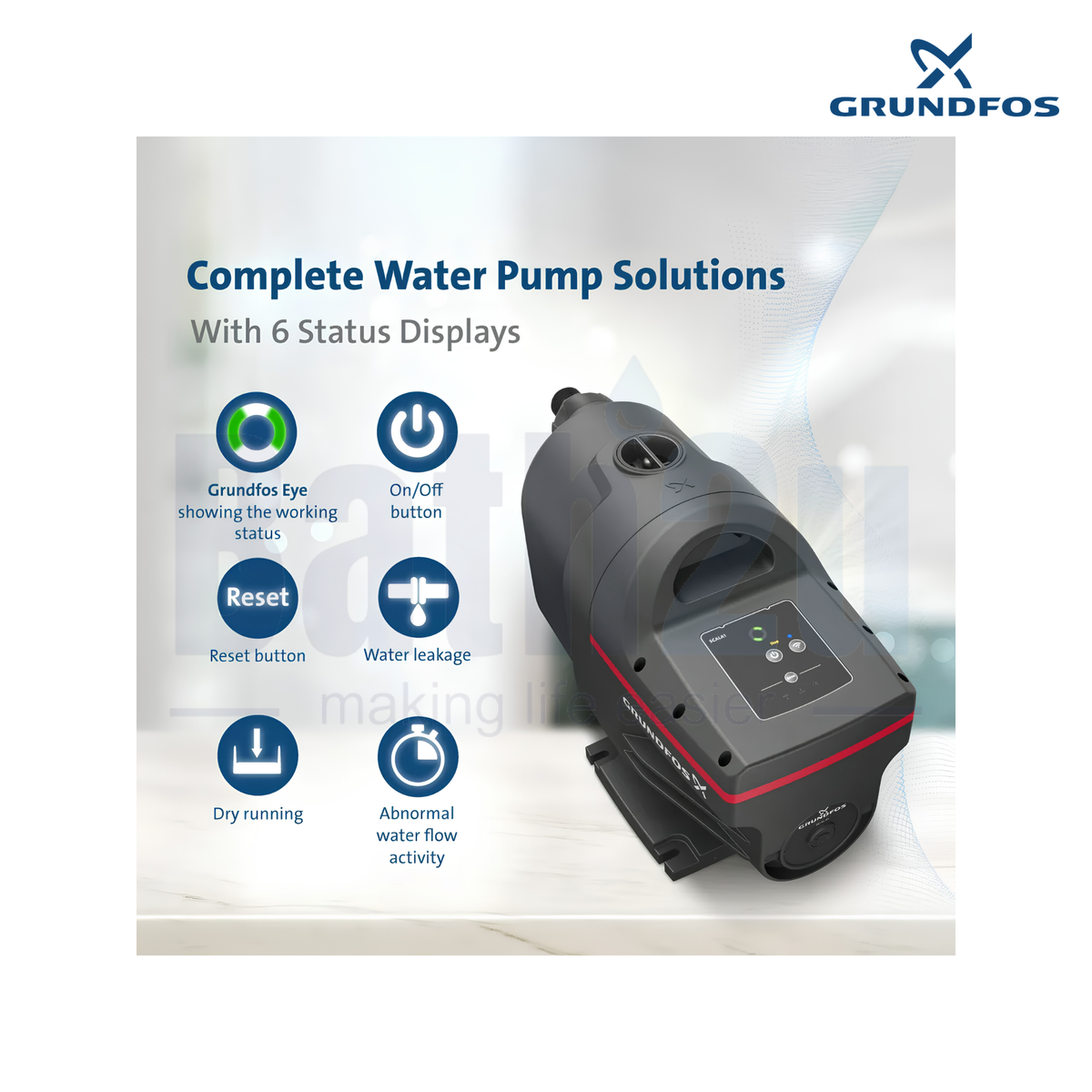

- Comprehensive System Protection: Features built-in dry-running protection, micro-leakage detection / anti-cycling protection (factory default ON), and adjustable maximum runtime protection to safeguard your system.
- Quiet & Efficient Operation: Utilizes a water-cooled permanent magnet motor that maintains a clean noise level below 55 dB(A).
- Weatherproof & Flexible Design: Designed for indoor or outdoor installation with plug-and-play simplicity and easy set point adjustment.
- External Input Capability: Equipped with external input functionality to support flexible water-on-demand operation.

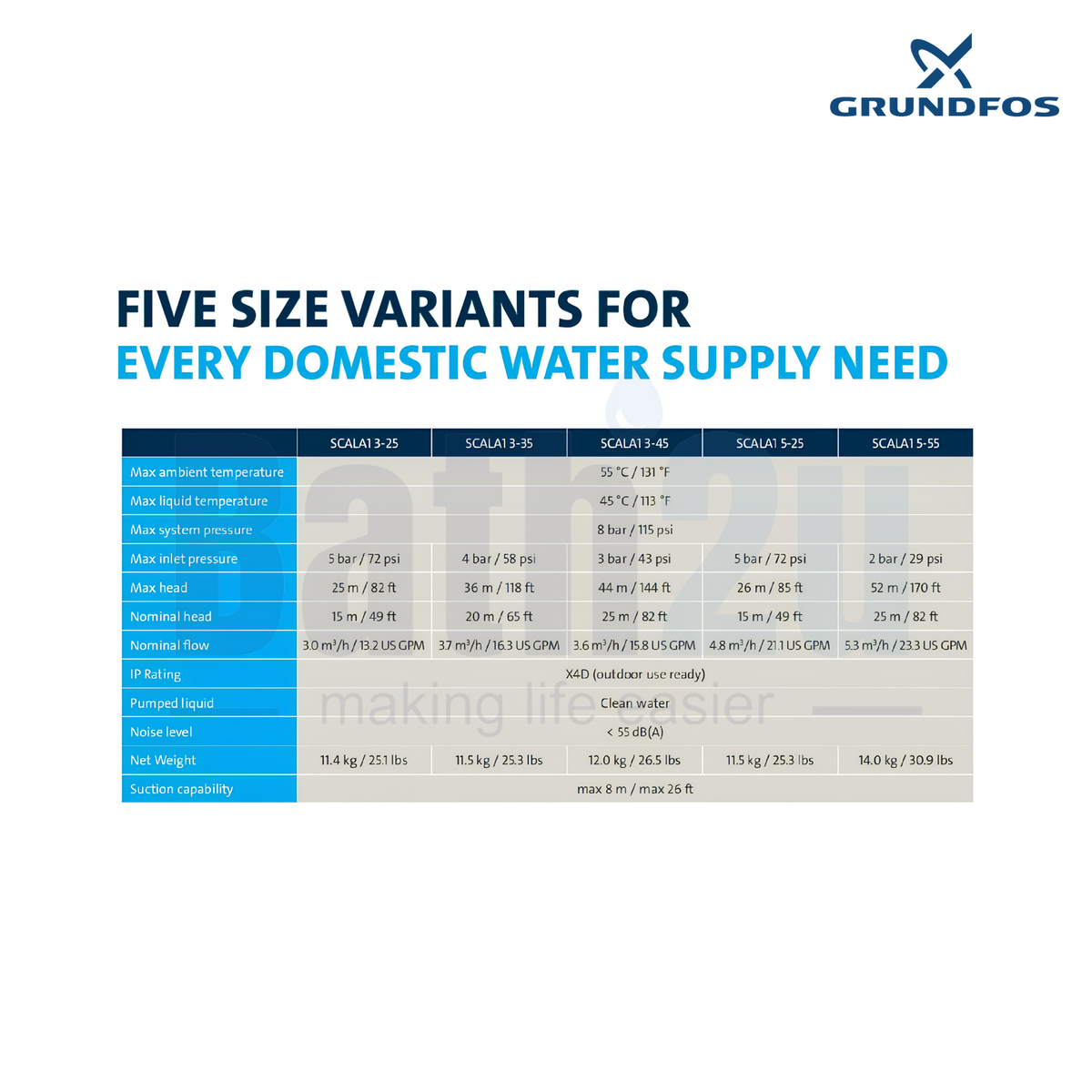

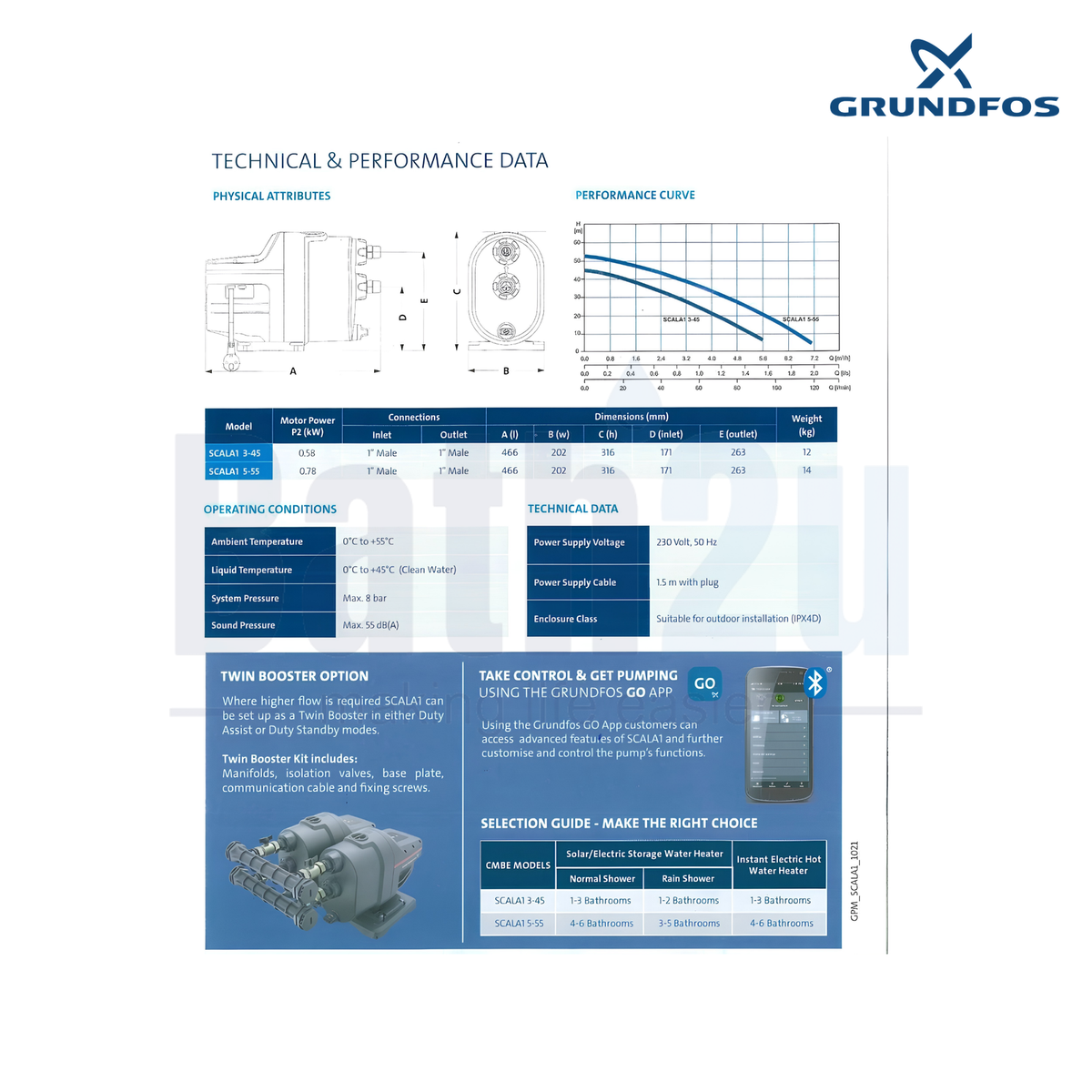

Product Specifications:
- Brand: Grundfos
- Model: SCALA1 3-35
- Product Type: Self-priming, multistage pressure booster water pump

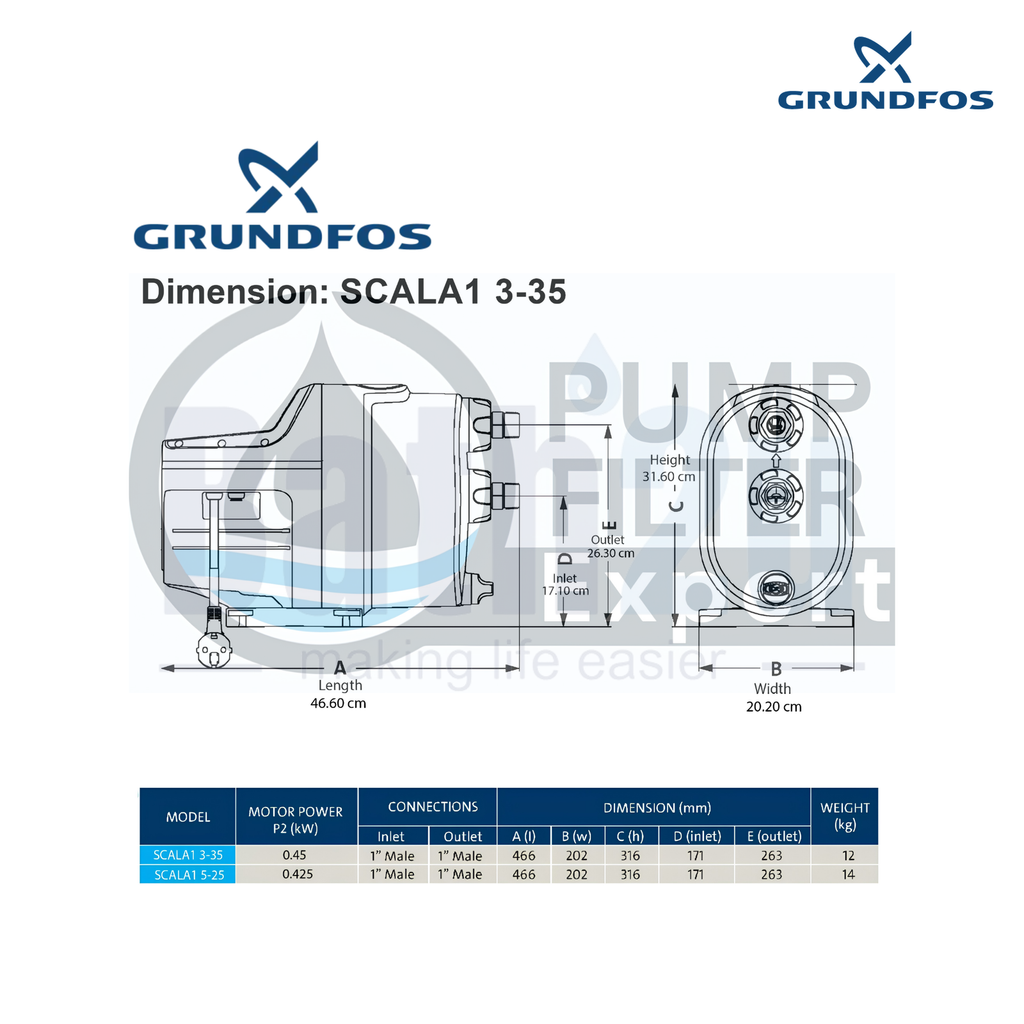

- Discharge Size: 1″ x 1″
- Motor Power: 0.45kW
- Motor Type: Water-cooled permanent magnet motor
- Nominal Flow Rate: 60 L/min
- Nominal Head: 20 meters (20mH)
- Max Head: 36 meters
- Manometric Suction Lift: Max. 8 meters [8 m (26.2 ft)]
- Noise Level: < 55 dB(A)
- Pumped Liquid Requirements: Clean, thin, fresh water; pH value 4~7
- Liquid Temperature Limit: Max. +45°C
- Environment Temperature Limit: Max. +40°C
- Weight: 12 kg
- Enclosure Material: Composite enclosure
- Default Installation Piping: PVC pipes & fittings
Package Includes:
Package contents are not specified in the available product information. Please contact Bath2u to confirm before purchasing.
Why Choose Grundfos SCALA1 3-35?
The Grundfos SCALA1 3-35 combines advanced water-cooling technology, quiet operation, and smart mobile management into a reliable pressure booster pump. With built-in anti-cycling leak detection, dry-run protection, and seamless app control, it delivers stable, on-demand water pressure tailored for residential spaces with up to 3 bathrooms.
Recommended Applications & System Compatibility:
- Bathroom Compatibility: Suitable for homes with 1 to 3 bathrooms.

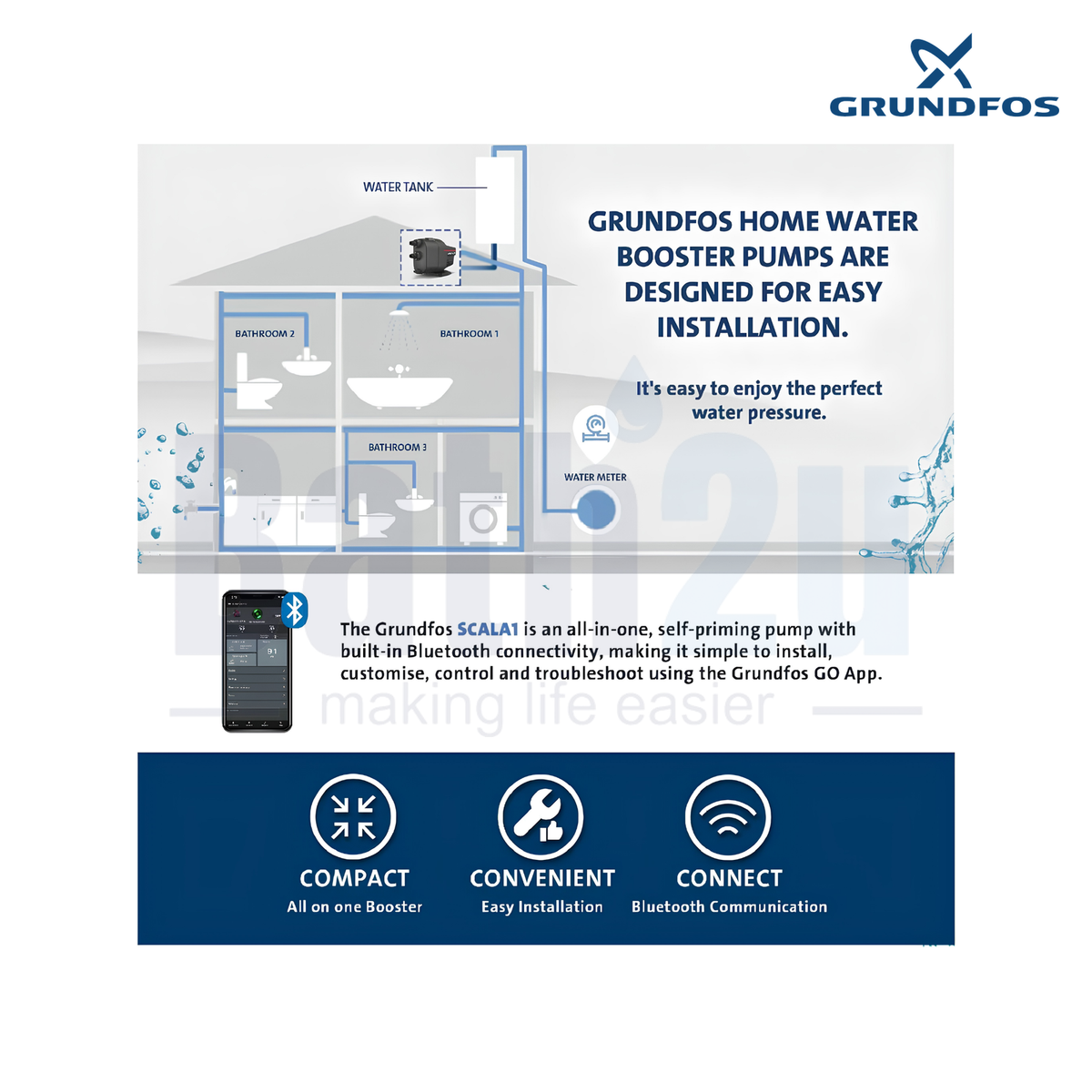

- Pressure Boosting: Ideal for city mains water, roof tanks, break tanks, and ground tanks.
- Shallow Wells: Suitable for water supply from shallow wells up to 8 meters (26.2 ft) deep.
- Outdoor Uses: Recommended for garden irrigation and general water transfer.
- Fluid Protection Recommendation: Recommended to install a filter on the inlet side or apply a floating strainer if sand or impurities are present.
Installation Requirements & Conditions:
- Pre-Installation Conditions: Requires house plumbing and power point to be ready prior to installation.
- Standard Piping Package: Basic piping from water tank to pump is included in the installation package using standard PVC pipes & fittings (surcharges apply for different materials or piping modifications).
- Replacement Installation (Klang Valley Only): Applies to same model to same type replacement only, same inlet/outlet type, up to maximum 3 outlets (extra work required if more outlets exist).
- Coverage Area: Fixed package price installation coverage applies to Kuala Lumpur & Selangor.
Warranty Information:
Includes 2 Years General Warranty (+6 Months Warranty upon online registration).
