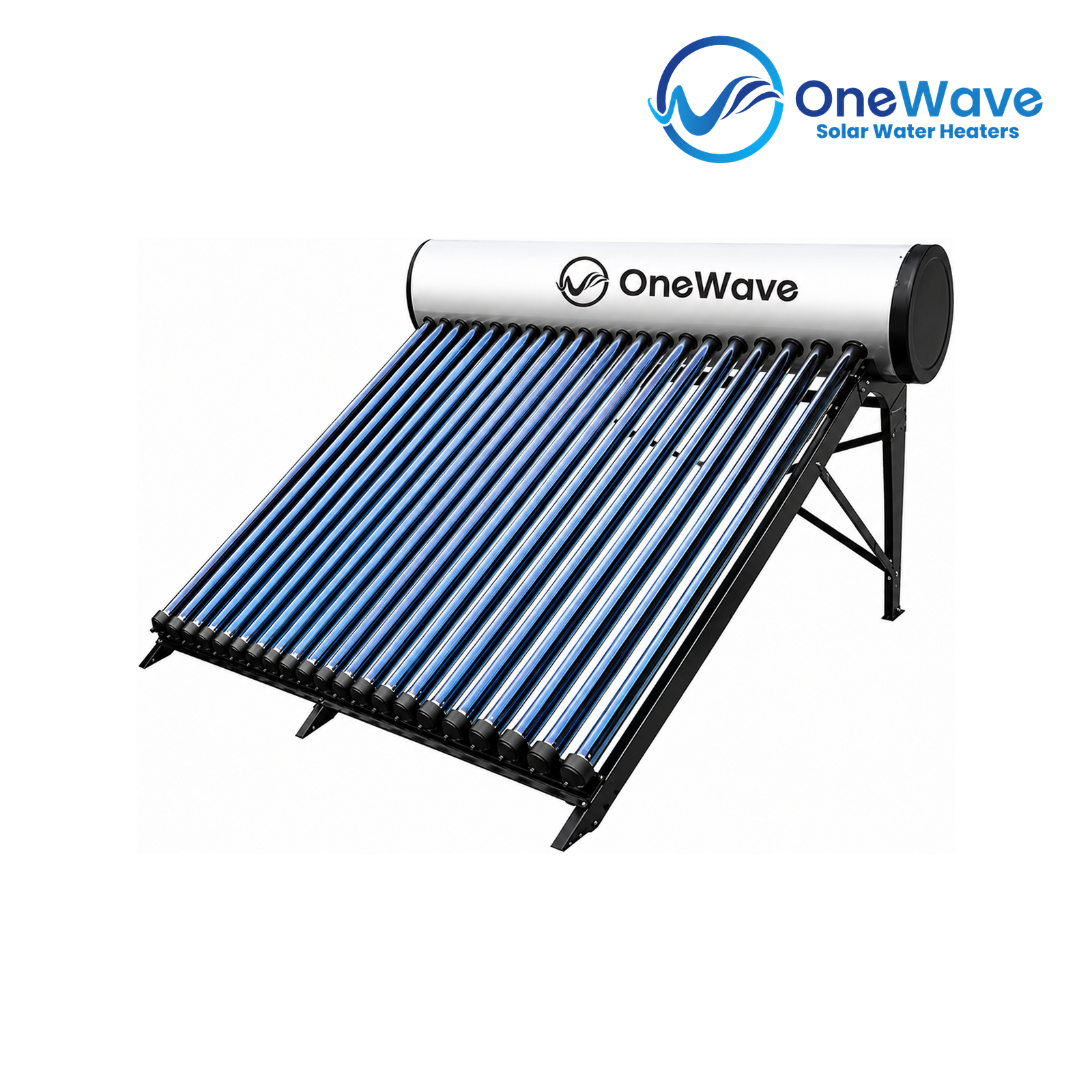

OneWave Solar Water Heater | Heat Pipe Evacuated Tube System | OW 150 / OW 300 / OW 300 Xtreme

Key Features:

• Heat Pipe Evacuated Tube Solar Water Heater
• Pressurized sealing system
• Closed-loop solar collector system
• 2-layer Borosilicate Glass 1.6mm evacuated tubes
• 8mm TU1 Copper Heat Pipe
• SS-CU-ALN/AIN absorptive coating
• 50mm high-density pressure-injected polyurethane foam insulation
• Magnesium Rod tank protection
• 3kW DN25 Incoloy 800 backup heating element
• Temperature controller with water temperature reading and automatic backup heater
• T&P Relief Valve: 6 Bar / 99°C
• 3/4" Stainless Steel Socket water inlet/outlet
• Suitable for residential, commercial and industrial applications
• Available in OW 150, OW 300 and OW 300 Xtreme models
• Catalogue-stated 8-year warranty and 2-year guarantee

Specifications:

• Brand: OneWave
• Product Type: Solar Water Heater
• Technology: Heat Pipe Evacuated Tube
• System: Closed Loop / Indirect System
• Models: OW 150 / OW 300 / OW 300 Xtreme
• Tank Capacity: 150L / 300L / 300L
• Pressurized Tank: 850 kPa
• Tube Material: 2 Layers Borosilicate Glass 1.6mm
• Tube Length: 1900 mm
• Outer / Inner Tube Diameter: 58 mm / 47 mm
• Tube Coating: SS-CU-ALN/AIN Absorptive Coating
• Heat Pipe: Ø8mm TU1 Copper
• Tank Insulation: 50mm High Density Pressure Injected Polyurethane Foam
• Tank Protector: Magnesium Rod
• Backup Heater: 3kW DN25 Incoloy 800
• T&P Relief Valve: 6 Bar / 99°C
• Water Inlet/Outlet: 3/4" Stainless Steel Socket

Model Specifications:

OW 150

• Tank Capacity: 150L
• Overall Dimension (W × L × H): 1500 × 2000 × 520 mm
• Overall Weight (Empty / Full): 68 kg / 223 kg
• Number of Users: 4 Users
• Vacuum Tube Quantity: 12
• Efficiency: 90%–94%
• Inner Tank: Ø360mm, SUS304L

OW 300

• Tank Capacity: 300L
• Overall Dimension (W × L × H): 2400 × 2000 × 520 mm
• Overall Weight (Empty / Full): 108 kg / 416 kg
• Number of Users: 7 Users
• Vacuum Tube Quantity: 22
• Efficiency: 90%–94%
• Inner Tank: Ø360mm, SUS304L

OW 300 Xtreme

• Tank Capacity: 300L
• Overall Dimension (W × L × H): 2400 × 2000 × 520 mm
• Overall Weight (Empty / Full): 118 kg / 426 kg
• Number of Users: 9 Users
• Vacuum Tube Quantity: 30
• Efficiency: 99%
• Inner Tank: Ø360mm, SUS316L

Storage Tank Specifications:

• Outer Tank Diameter: Ø460mm
• Outer Tank Material: 304 Stainless Steel
• Heat Exchange Socket: SUS304L / SUS316L Stamping Molding
• Insulation Material: 50mm High Density Pressure Injected Polyurethane Foam
• Tank Protector: Magnesium Rod
• Backup Heater System: 3kW DN25 Incoloy 800 Backup Heating Element
• Solar Controller: Water Temperature Reading / Automatic Backup Heater
• System: Indirect System
• Pressurized Tank: 850 kPa

Warranty:

• 8 Years Warranty
• 2 Years Guarantee

Applications:

• Residential
• Commercial
• Industrial
