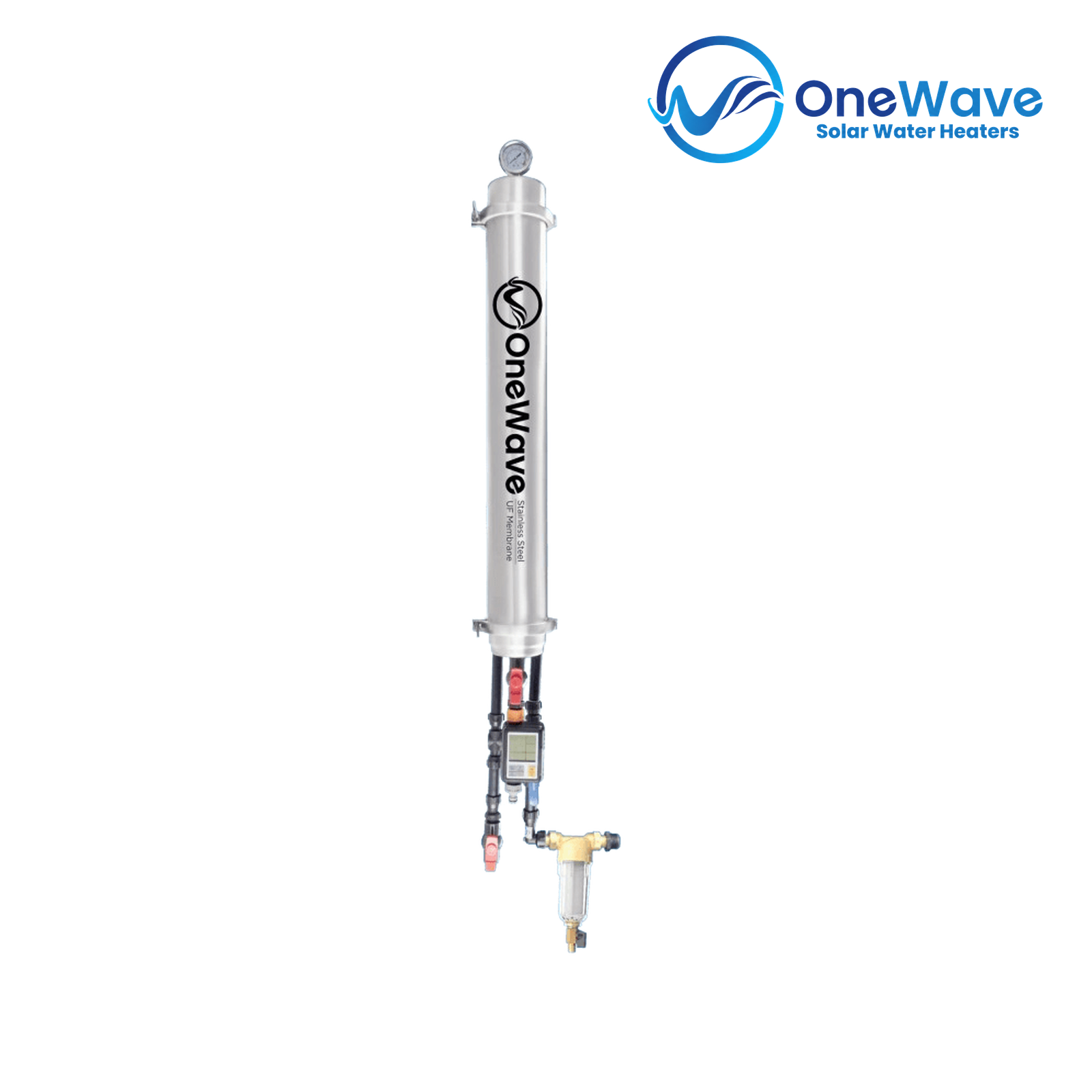

OneWave OWM Series PVDF Ultrafiltration Membrane Filter | 0.01 Micron | 3500–5500 L/H

Key Features:

• PVDF ultrafiltration membrane designed for fine water filtration
• 0.01-micron filtration density for filtering fine particles and contaminants
• High flow rate options: 3500 L/H, 4500 L/H and 5500 L/H
• German 304 Grade Stainless Steel filter body
• Auto timer for scheduled backwashing and efficient filter maintenance
• Pressure gauge helps monitor system pressure and detect flexible membrane pressure conditions
• 3-way valve for versatile filter and backwashing operations
• Additional prefilter removes larger particles and sediment before the main filtration stage
• Designed to filter soil, sediment, bacteria, viruses and microorganisms as shown in the product specifications
• Suitable for residential, commercial and food & beverage applications
• Hidden pipe design available on OWM4500 and OWM5500 models
• 10-year warranty on the 304 stainless steel cover
• 1-year warranty for the whole system

Specifications:

• Brand: OneWave
• Series: OWM Series
• Product Type: PVDF Ultrafiltration Membrane Filter
• Models: OWM3500 / OWM4500 / OWM5500
• Filtration Type: Membrane
• Filtration Density: 0.01 Micron
• Membrane Material: Polyvinylidene Fluoride (PVDF)
• Filter Body Material: German 304 Grade Stainless Steel
• Maximum Temperature: 75°C

Model Specifications:

• OWM3500
  • Flow Rate: 3500 L/H
  • Hidden Pipe: No
  • Body Dimension: Dia. 5 × L820 mm
  • Net Weight: 4.10 kg
• OWM4500
  • Flow Rate: 4500 L/H
  • Hidden Pipe: No
  • Body Dimension: Dia. 5 × L920 mm
  • Net Weight: 6.90 kg
• OWM5500
  • Flow Rate: 5500 L/H
  • Hidden Pipe: Yes
  • Body Dimension: Dia. 5.5 × L1000 mm
  • Net Weight: 7.95 kg

Filtration & Operation:

The OneWave OWM Series uses a 0.01-micron PVDF ultrafiltration membrane for fine filtration. The system is illustrated as filtering soil, sediment, bacteria, viruses and microorganisms.

The operation guide shows Filter Mode, Flushing Mode and Backwash/BYPASS Mode. For the filter without a controller, the guide recommends backwashing at least once a week. For controller-equipped operation, the displayed instructions include automatic daily cleaning and normal flushing through the controller or manual valve.

Note: Flow rate may vary depending on incoming water pressure.
