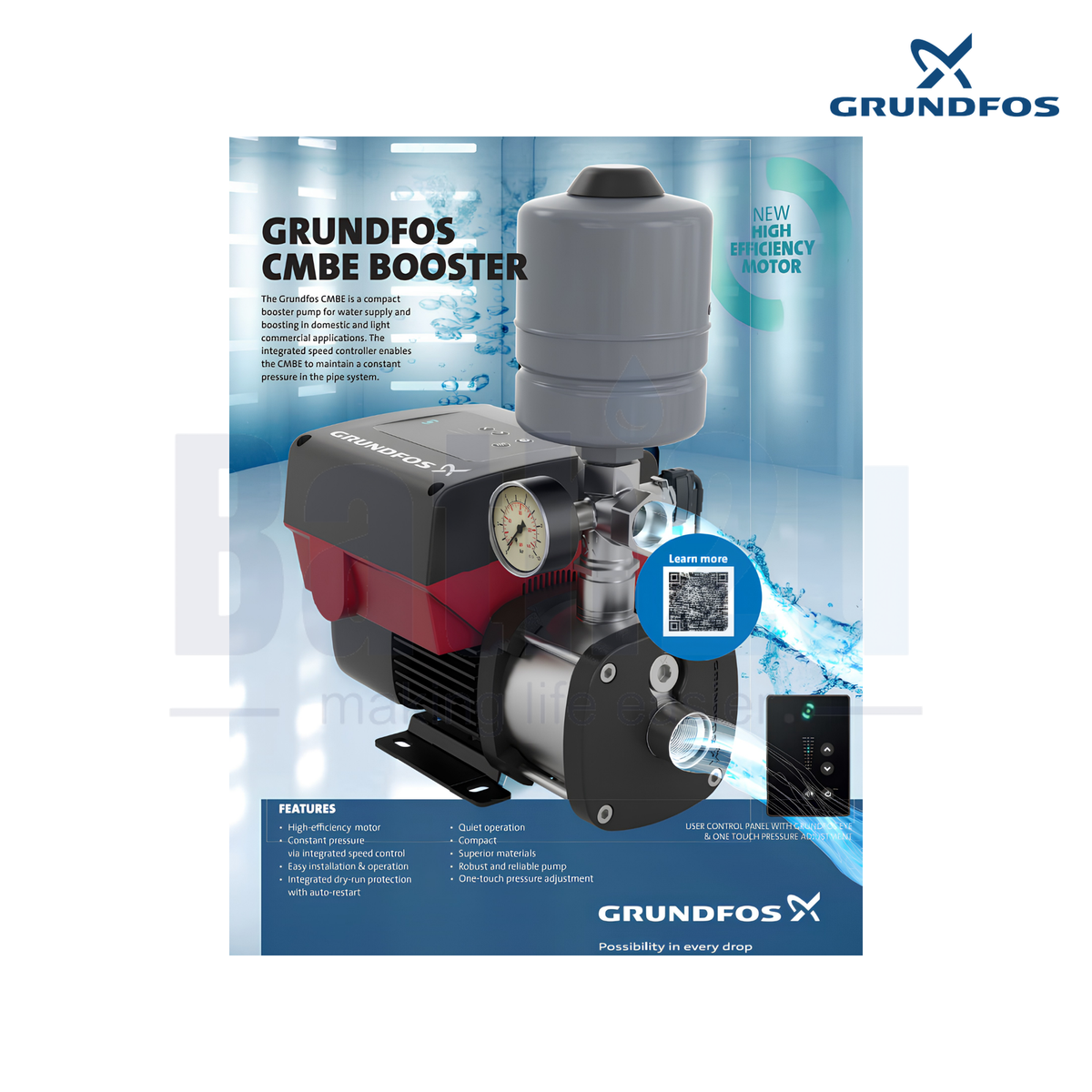

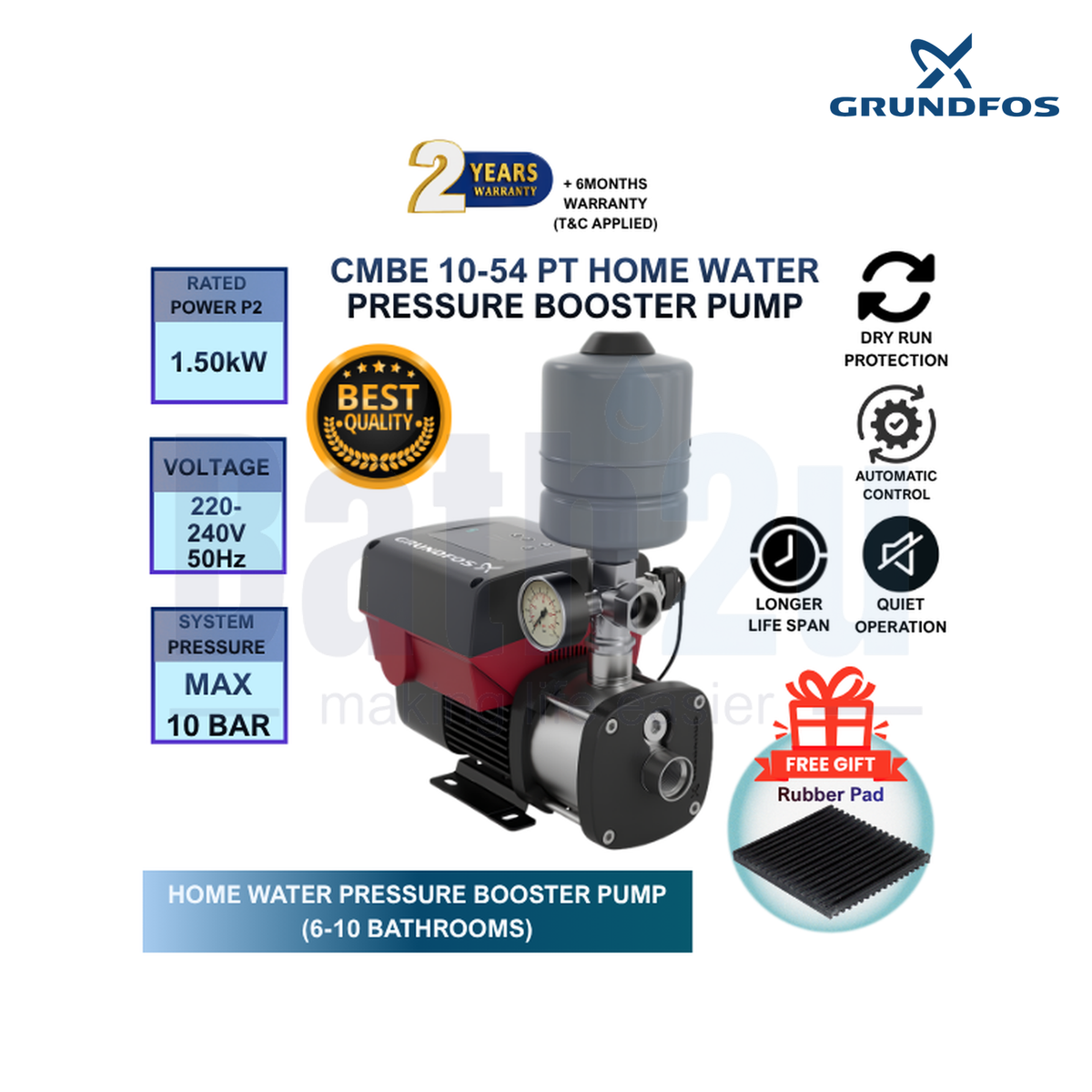

The Grundfos CMBE10-54 is a variable speed water pressure booster pump designed to provide reliable, constant water pressure for demanding residential and light commercial applications. Engineered with integrated variable speed drive technology, a built-in pressure sensor, and robust stainless steel construction, this system efficiently supports large homes and multi-storey facilities while ensuring quiet operation and extended lifespan through reduced cycling.

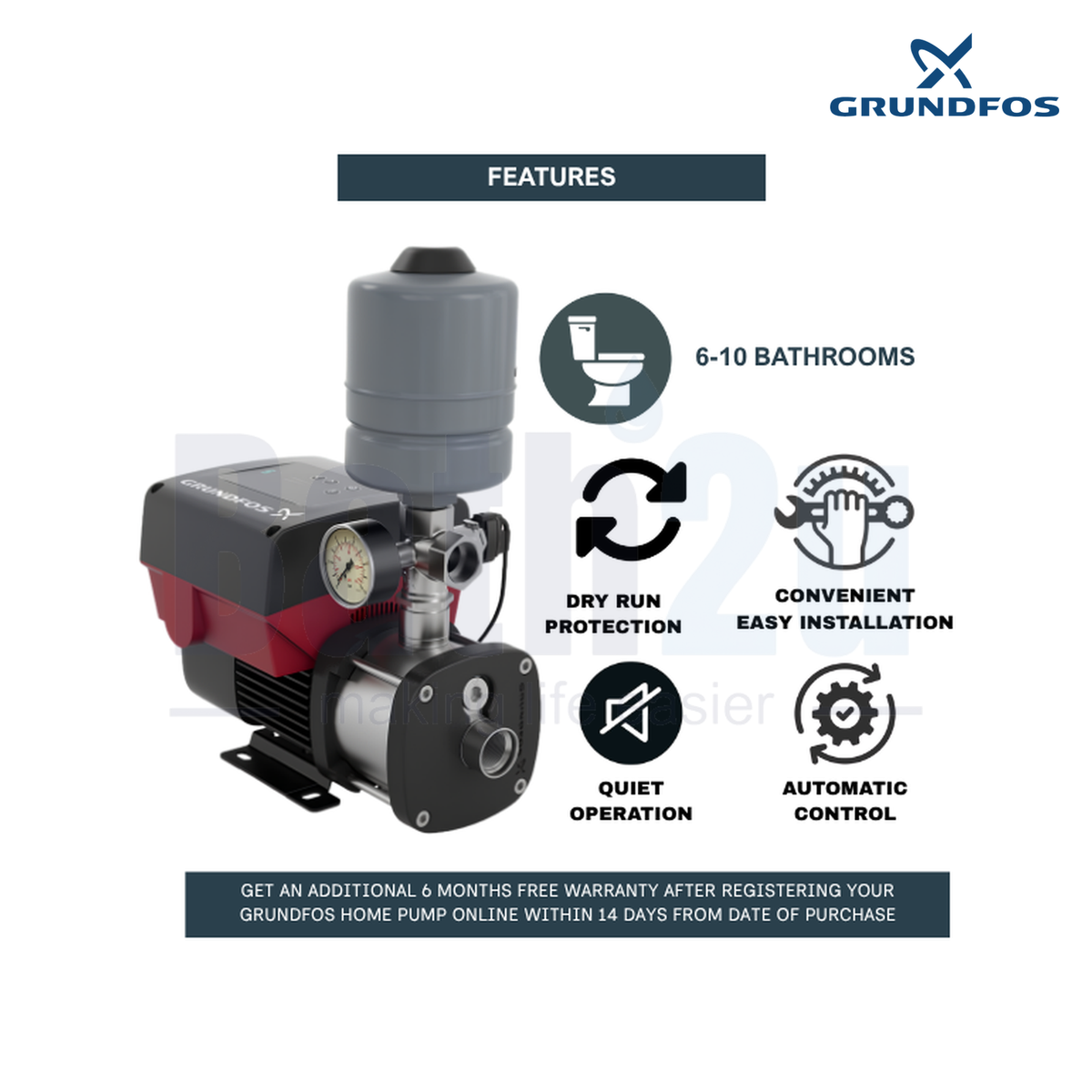

Key Features:

• Integrated Variable Speed Drive (VSD) technology and frequency converter for precise, constant pressure control.
• User-friendly control panel featuring an intuitive interface, LED indicators, and adjustable pressure settings.
• Built-in 2L pressure tank designed to reduce pump cycling and extend overall system lifespan.
• Low-noise and quiet operation for discreet placement in residential or commercial environments.
• Constructed with durable stainless steel pump housing, impellers, and diffusers for refined, long-lasting performance.

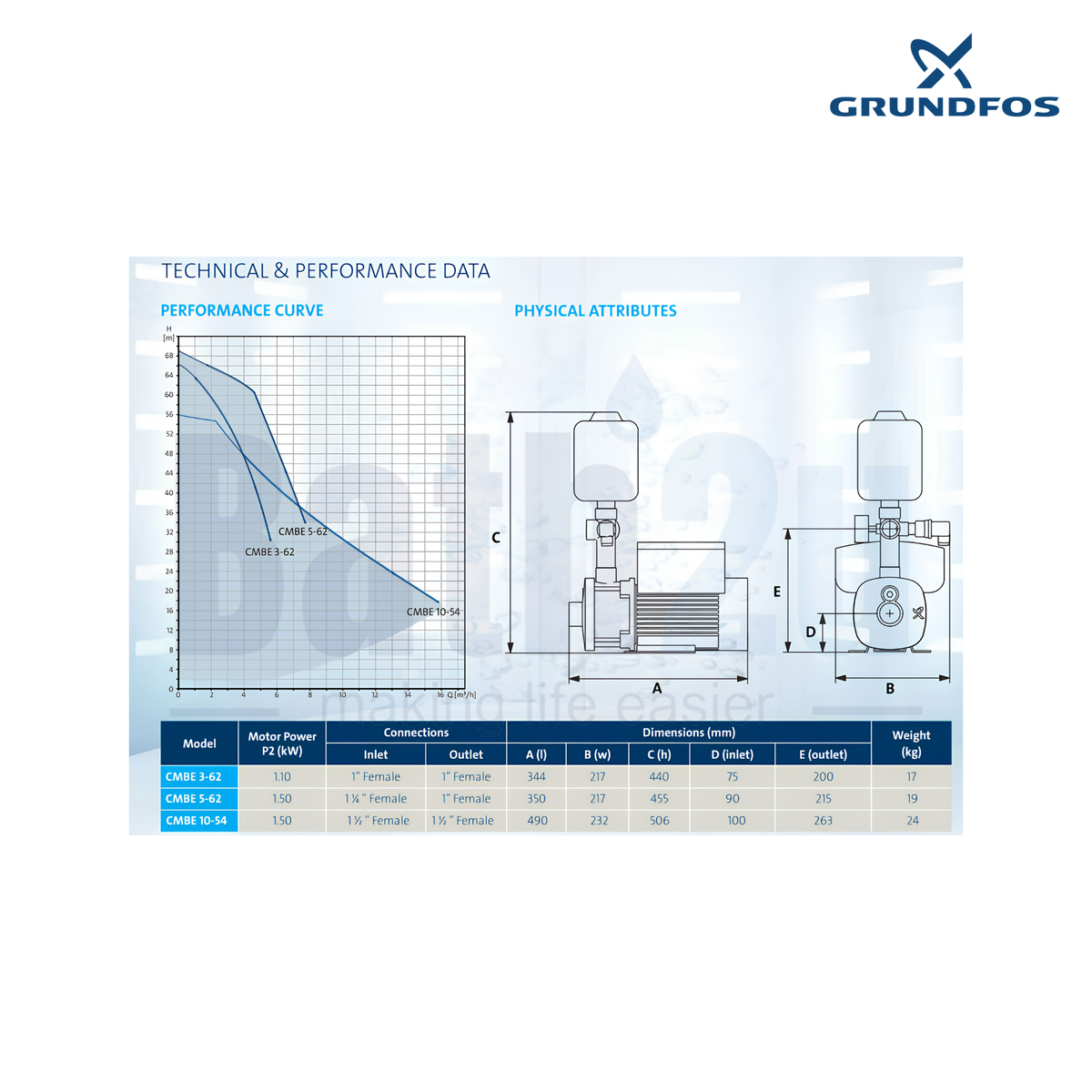

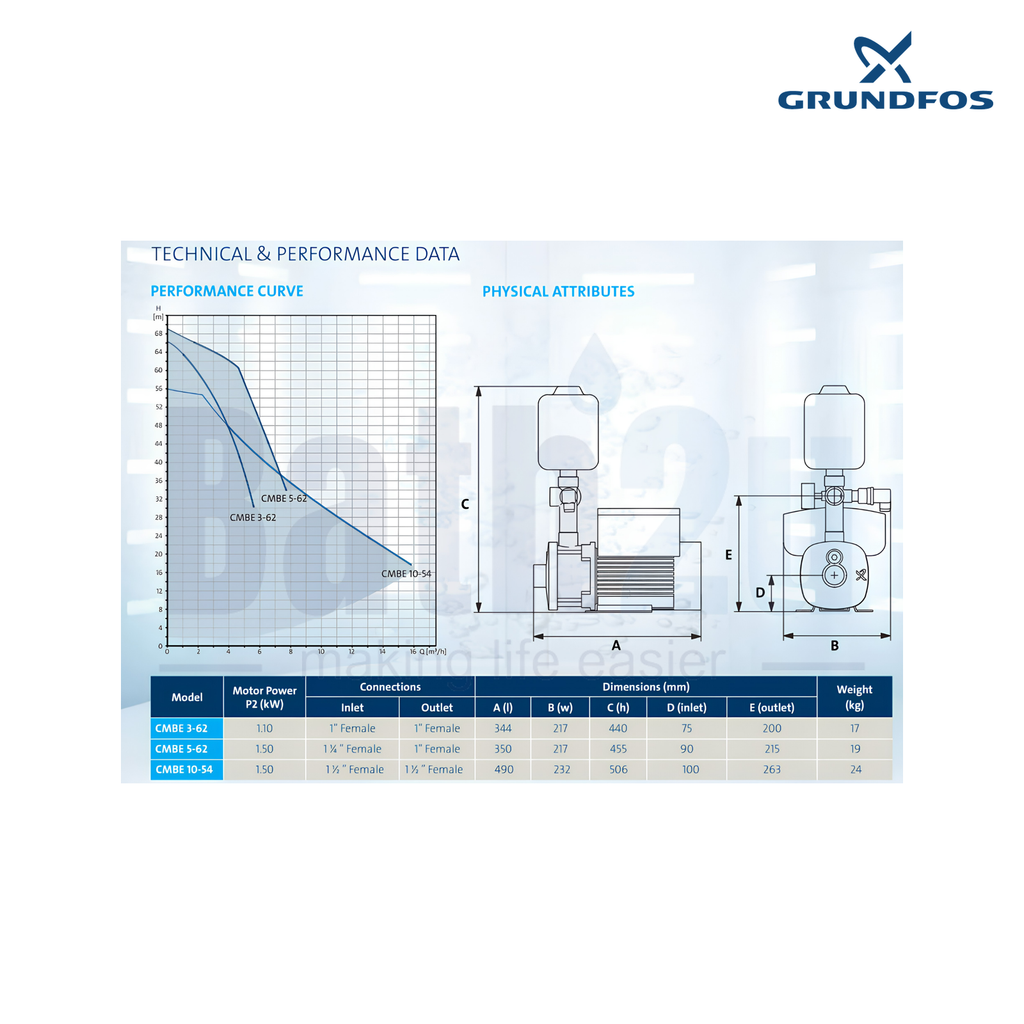

Product Specifications:

• Brand: Grundfos
• Model: CMBE10-54
• Product Type: Variable Speed Water Pressure Booster Pump
• Product Code: 99953872 (CMBE1054)
• Motor Power: 1.5 kW (2 HP)
• Voltage: 230V, 50Hz (Single Phase)
• Maximum Flow Rate: 266 L/min
• Maximum Head: 56 m
• Pressure Tank Capacity: 2 L
• Maximum System Pressure: 10 bar
• Inlet and Outlet Connection Size: 1-1/2"
• Pump Housing Material: Stainless Steel
• Impellers & Diffusers Material: Stainless Steel
• Pressure Tank Material: Steel with protective coating
• Shaft Seal Material: Carbon / Ceramic
• Certifications: SIRIM certified

Package Includes:

• CME pump with integrated frequency converter
• Five-way valve
• Expansion (pressure) tank
• Pressure gauge

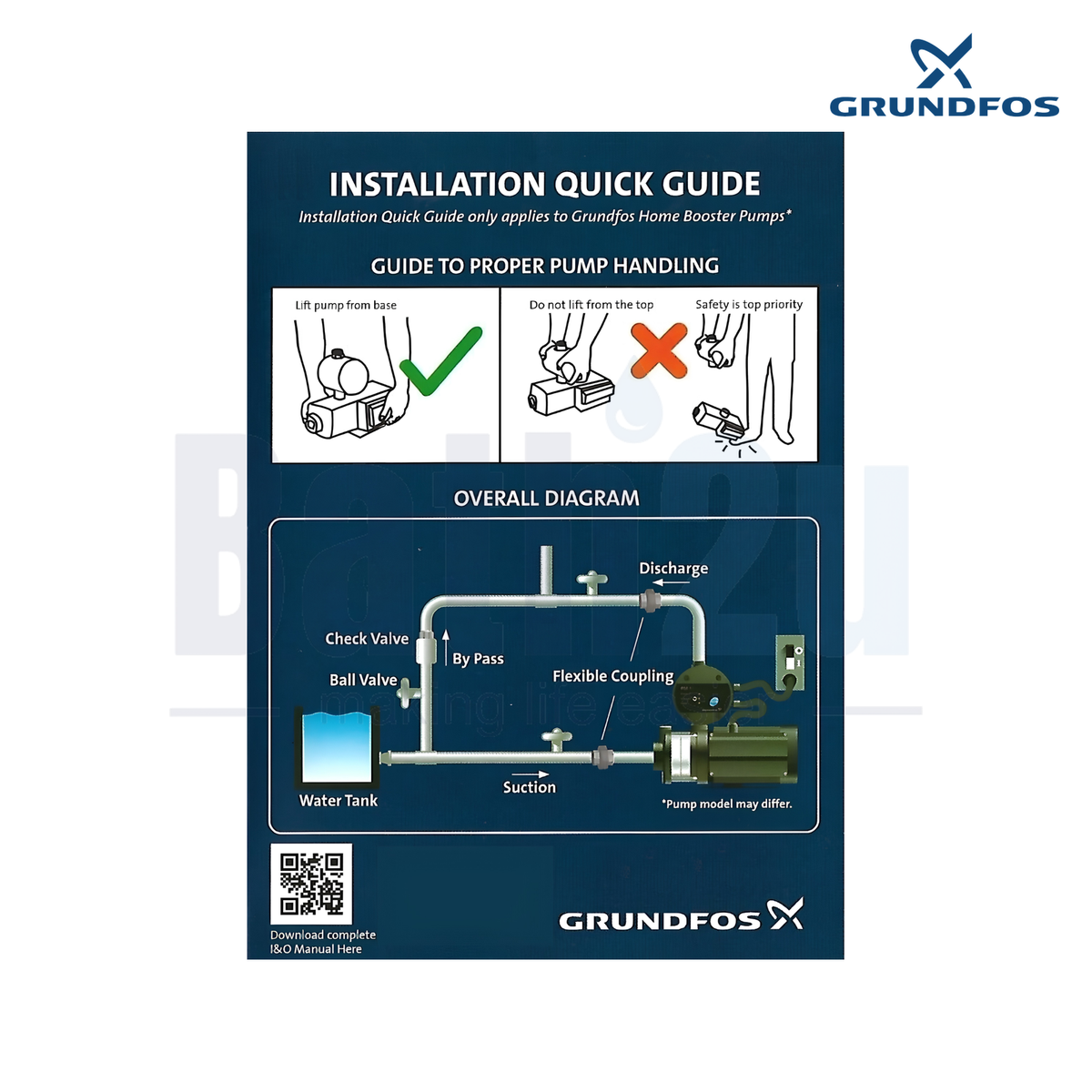

Compatibility & Installation:

• Suitable for 7–11 bathrooms and large residential homes, multi-storey buildings, hotels, guesthouses, serviced apartments, light commercial buildings, office facilities, garden irrigation, and landscaping systems.
• House plumbing and power point must be ready before installation.
• Must be installed in a dry, well-ventilated area protected from extreme temperatures and direct sunlight.
• Mount on a stable, level surface to reduce vibration and use proper fittings for 1-1/2" connections.
• Isolation and non-return valves are recommended.
• Electrical connection must be done by a qualified electrician; ensure proper priming and pressure setting before operation.

Warranty:

• Source text contains conflicting warranty information: 3-year warranty mentioned in one section, while another section states 2 Years General Warranty plus 6 Months Warranty with Online Registration.

Why Choose Grundfos CMBE10-54?

• Delivers exceptional performance with a maximum flow rate of 266 L/min and 56 m head capacity.
• Provides stable, constant water pressure across 7 to 11 bathrooms simultaneously.
• Features a versatile design ideal for large residential properties, hotels, office facilities, and irrigation systems.
• Built with high-quality stainless steel wated-contact components for dependable operation.
